When people talk about chargers, they usually picture the outer casing, the connectors, or the LEDs. But the real intelligence of every charging system lives inside the PCB — the printed circuit board that controls power, safety, communication, and reliability.
And every one of those PCBs begins its life in the same place: our SMT (Surface Mount Technology) workshop.
In this article, we’re taking you behind the scenes into one of the most important areas of our production line — where precision, automation, and clean manufacturing come together to create the electronics that power our chargers.
SMT is the process of placing electronic components directly onto the surface of a PCB. These components form the “brain” of every charger — handling everything from voltage management to thermal protection to communication with the vehicle or equipment.
A high-quality SMT process ensures:
Stable and reliable electronics
Consistent performance across every charger
Fewer defects and longer lifetime
High-volume production capability
Strong resistance against vibration, moisture, and harsh environments
If the PCB isn’t perfect, nothing else matters — which is why our SMT workshop is one of the most carefully controlled spaces in our entire facility.

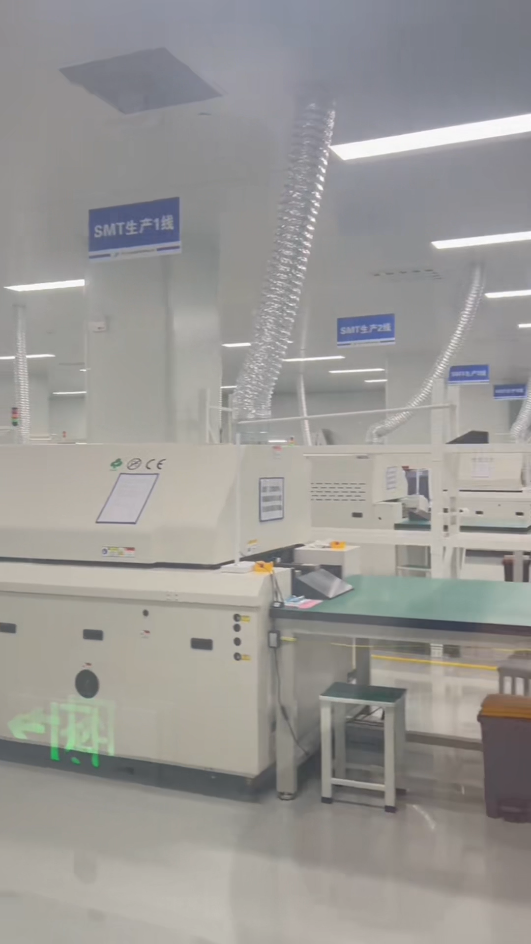

When you enter our SMT workshop, the first thing you notice is the clean, bright, and highly organized environment. This is intentional.
Electronics need extremely low contamination, stable temperature, and consistent humidity. Dust, static, and small particles can impact solder joints or cause long-term reliability issues.
Our SMT area is built with:
Anti-static flooring
Dust-controlled air filtration
Constant temperature and humidity control
Dedicated lines for different charger models
Everything here is designed to protect the tiny components that make big power possible.
The SMT process begins with high-speed pick-and-place machines. These systems read the PCB design, pick components from loaded reels, and place them on the board with incredible speed and accuracy — down to fractions of a millimeter.
At First Power Technology, our machines offer:
High-speed component placement
Multi-head synchronized operation
0201 component handling
Automatic optical alignment
Real-time placement verification
Whether we’re populating control boards for a 10kW on-board charger or power modules for industrial charging systems, consistency is guaranteed.
Once components are placed, the boards pass through our reflow oven — a long, temperature-controlled tunnel designed to melt solder paste and permanently bond components to the PCB.
This step ensures:
Strong, vibration-resistant solder joints
Uniform heating across large and small components
Reliability in demanding applications like UTVs, forklifts, marine equipment, tractors, and GSE
Every zone of the oven is monitored to maintain perfect solder curves.
Quality control is built into every step.
After reflow, every PCB passes through AI-assisted AOI inspection.
The system checks for:
Missing components
Improper orientation
Solder bridges
Misalignment
Micro defects invisible to the human eye
Only PCBs that pass all inspection checkpoints move on to the next stage of charger assembly.
After SMT and QC, the PCBs are ready for integration into our wide range of chargers, including:
On-board chargers (fan / fanless)
External chargers
High protection chargers
Industrial and commercial power units
Each PCB is serialized, logged, and traceable — a critical part of maintaining consistency across global OEM orders.
For OEMs, reliability isn’t optional — it’s essential.
A high-quality SMT process directly impacts:
Stable power management and error-free control systems.
Boards that survive vibration, temperature shifts, moisture, and long operating hours.
Large production runs that stay consistent from the first unit to the 10,000th.
Different PCB configurations for different charger models and customer needs.
When customers choose First Power Technology, they’re choosing a partner that builds quality into the process — starting with the very first component on the PCB.
Our SMT workshop is where every smart decision, every safety function, and every watt of controlled power begins.
It’s the hidden foundation behind the chargers we deliver to UTVs, ATVs, forklifts, yachts, tractors, GSE, and more.
Stronger PCBs = stronger chargers = stronger performance in the field.
And that’s exactly how we build at First Power Technology.
Whether you need custom charger designs, OEM production scaling, or high-reliability electronics manufacturing, we’re ready to support your next project.
