FST-H-80100
FIRST POWER
Lithium-ion
External Hi-Protection
CE, UL, FCC
Forklift
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 65 Protection level, robust against dust, humidity, vibration etc.
SPECIFICATION
AC input | FST-H-36100-3AF-XX-X | FST-H-36150-3AF-XX-X | FST-H-48100-3AF-XX-X | FST-H-48150-3AF-XX-X | FST-H-80100-3AF-XX-X | FST-H-9680-3AF-XX-X | FST-H-96100-3AF-XX-X | FST-H-15060-3AF-XX-X | FST-H-20045-3AF-XX-X | FST-H-31030-3AF-XX-X | FST-H-35025-3AF-XX-X | FST-H-62015-3AF-XX-X |
Input Voltage | 3P 220/240/380/440/480VAC | |||||||||||
Max. input current | 15/30A | |||||||||||
Input frequency | 45-65HZ | |||||||||||
Max. Input power | 5.5KW/ 10.5KW | |||||||||||
Power factor | > 0.99 | |||||||||||
X capacity | 0.68µF / 6.6µF | |||||||||||
Y capacity L1 PE | 15.1nFX3 / 16.3nFX3 | |||||||||||
DC output | ||||||||||||
Suitable for Lithium Batteries | 36V | 36V | 48V | 48V | 80V | 96V | 96V | 150V | 200V | 310V | 350V | 620V |
Suitable for Lead-Acid Batteries | 36V | 36V | 48V | 48V | 84V | 96V | 96V | 144V | ||||
Output Voltage range | 15-49VDC | 15-49VDC | 20-66VDC | 20-66VDC | 35-115VDC | 40-132VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC |
Charging voltage accuracy | 0.5% | |||||||||||
Charging current accuracy | 0.5%FS | |||||||||||
Max. charging current (3 phase) | 100A | 150A | 100A | 150A | 100A | 80A | 100A | 60A | 45A | 30A | 25A | 15A |
Max. charging power (3 phase) | 7KW | 10KW | ||||||||||
Efficiency | Up to 95% | |||||||||||

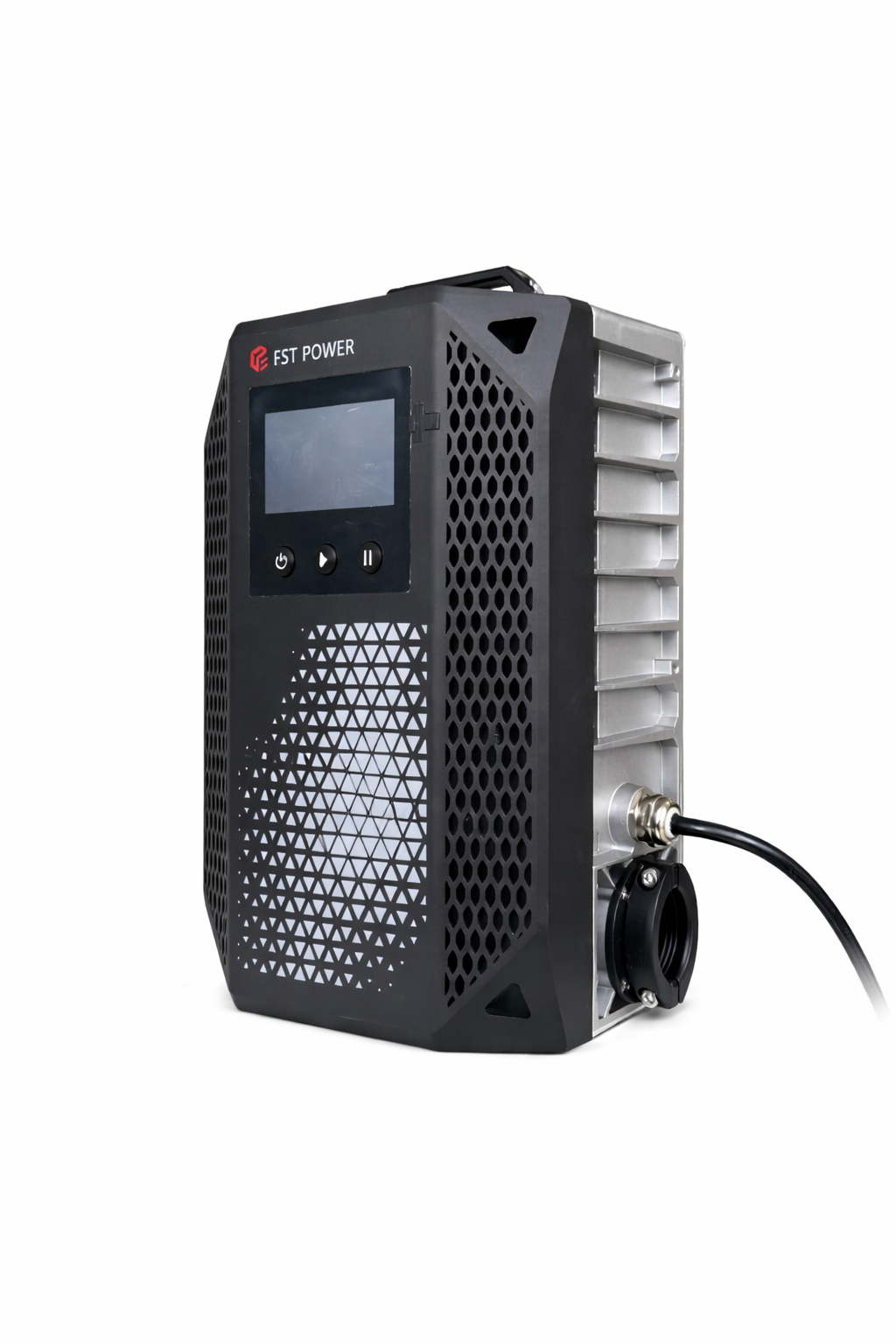

The FST-H 80V 100A Portable Charger is designed for fast, reliable, and efficient charging of electric vehicles and industrial machinery, including forklifts, AGVs, and other heavy-duty equipment. With a 100A output, it offers high-speed charging for 80V battery systems, minimizing downtime and optimizing fleet productivity.
Built with IP65 protection, this charger is resistant to dust and water, ensuring reliable performance in challenging environments. It provides a charging voltage range of 35-115VDC, with charging voltage accuracy and current accuracy both at 0.5% for precise charging.
Safety is a top priority with features like phase-loss protection, overvoltage, undervoltage, and short-circuit protection, ensuring safe charging in any environment. The charger also incorporates a fan-based cooling system to maintain optimal performance during extended charging periods.
With up to 95% efficiency, the FST-H 80V 100A Portable Charger helps reduce energy consumption and lowers operational costs. Designed to operate in temperatures ranging from -40°C to 55°C and at elevations up to 4000 meters, it provides flexibility for diverse industrial environments. Fully CE, FCC, and TUV certified, this charger ensures safety, compliance, and high performance for your fleet.
