FST-H-36100
FIRST POWER
Lithium-ion
External Hi-Protection
CE, UL, FCC
Material Handling Equipment
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 65 Protection level, robust against dust, humidity, vibration etc.
SPECIFICATION
AC input | FST-H-36100-3AF-XX-X | FST-H-36150-3AF-XX-X | FST-H-48100-3AF-XX-X | FST-H-48150-3AF-XX-X | FST-H-80100-3AF-XX-X | FST-H-9680-3AF-XX-X | FST-H-96100-3AF-XX-X | FST-H-15060-3AF-XX-X | FST-H-20045-3AF-XX-X | FST-H-31030-3AF-XX-X | FST-H-35025-3AF-XX-X | FST-H-62015-3AF-XX-X |
Input Voltage | 3P 220/240/380/440/480VAC | |||||||||||
Max. input current | 15/30A | |||||||||||
Input frequency | 45-65HZ | |||||||||||
Max. Input power | 5.5KW/ 10.5KW | |||||||||||
Power factor | > 0.99 | |||||||||||
X capacity | 0.68µF / 6.6µF | |||||||||||
Y capacity L1 PE | 15.1nFX3 / 16.3nFX3 | |||||||||||
DC output | ||||||||||||
Suitable for Lithium Batteries | 36V | 36V | 48V | 48V | 80V | 96V | 96V | 150V | 200V | 310V | 350V | 620V |
Suitable for Lead-Acid Batteries | 36V | 36V | 48V | 48V | 84V | 96V | 96V | 144V | ||||
Output Voltage range | 15-49VDC | 15-49VDC | 20-66VDC | 20-66VDC | 35-115VDC | 40-132VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC |
Charging voltage accuracy | 0.5% | |||||||||||
Charging current accuracy | 0.5%FS | |||||||||||
Max. charging current (3 phase) | 100A | 150A | 100A | 150A | 100A | 80A | 100A | 60A | 45A | 30A | 25A | 15A |
Max. charging power (3 phase) | 7KW | 10KW | ||||||||||
Efficiency | Up to 95% | |||||||||||

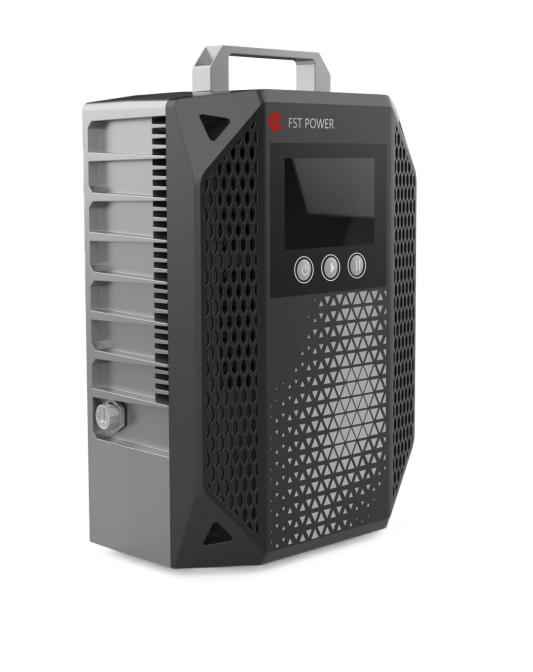

The FST-H 36V 100A Portable Charger delivers powerful and efficient charging for electric vehicles and industrial applications. Whether you’re charging lithium or lead-acid batteries, this charger provides fast, reliable performance with 100A charging capacity. Designed with IP65 protection, it is built to withstand tough environments, offering reliable operation even in challenging industrial settings.
This charger supports 36V battery systems and offers a charging voltage range of 15-49VDC for lithium batteries, with a charging voltage accuracy of 0.5% and current accuracy of 0.5% for precise charging. The compact and portable design makes it easy to move between various charging stations and environments.
Featuring multiple protection mechanisms, including phase-loss protection, input overvoltage/undervoltage, and short-circuit protection, the FST-H 36V 100A Portable Charger ensures safe operation. With up to 95% efficiency, it reduces energy consumption, keeping operational costs low. The charger is built to operate in temperatures ranging from -40°C to 55°C and supports elevations up to 4000 meters, making it suitable for a wide range of industries.
Certified with CE, FCC, and TUV, the FST-H 36V 100A provides peace of mind with top-tier safety and quality, ensuring that your fleet remains charged and ready for action at all times.
