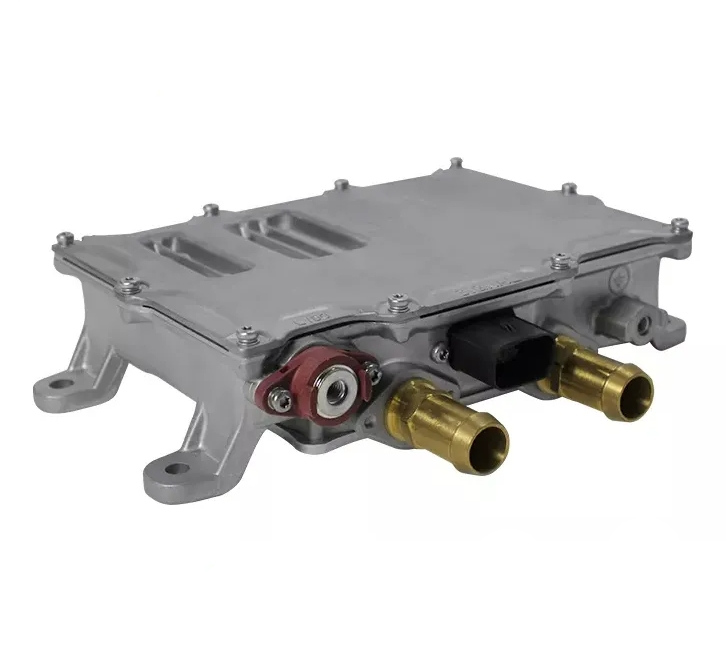

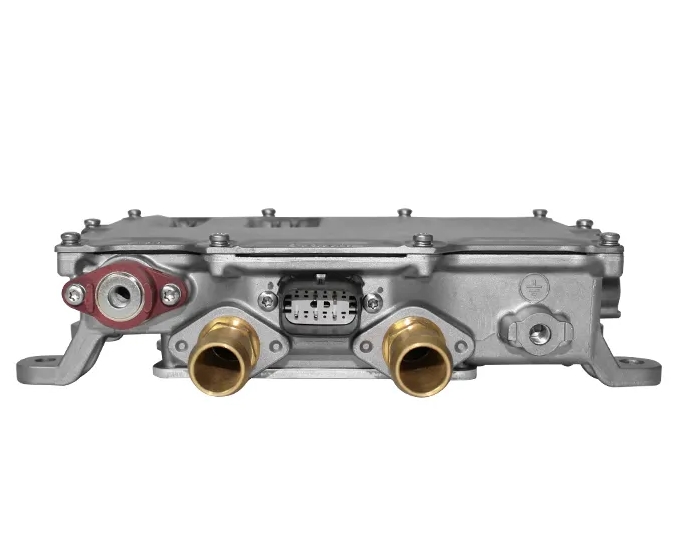

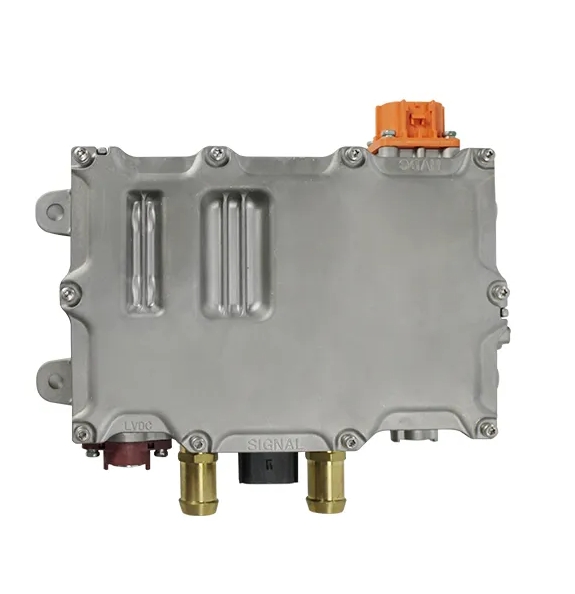

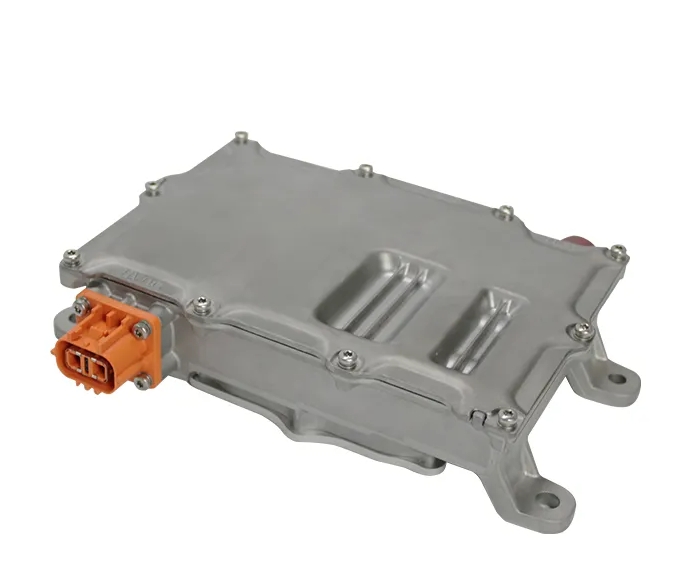

FST-DC
FIRST POWER
Lithium-ion
On Board
CE
Material Handling Equipment
1P85-265VAC
Multiple Outputs
Product Advantage
1.This charger family is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.98, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from single or three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 94%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
Specifications:
| Model | Output Voltage | Output Current | Output Voltage Range | Power | Cooling Way | DC Input Voltage | DC Input Current | Max Input Current | Series |
| FST-DC- | 14V | 143A | 9~15V | 2KW | Liquid Cooling | 320V | 7A | 10A | DC/DC |
Other Parameters
Communication | CAN BUS | |
Operating temperature | -30°C to 50°C. Over 45 °C Power reduces | |
| Storage Temperature | -40°C to 85°C | |
Relative humidity | 0%-95% | |
Protection level | IP67 | |
Noise | ≤65dB（ClassA） | |
Altitude | Below 2000m. | |
Basic Function
The First Power OBC converts single-phase alternating current into direct current while establishing galvanic isolation between the public AC grid and the industrial fleet's DC system. This setup facilitates battery charging while ensuring the safety of both grids. The charging process is managed through CAN, with the charger adjusting current and voltage according to signals received from the CAN interface. As a protective measure, if the unit does not receive CAN signals for approximately 0.2 seconds, it interrupts the charging process to prevent potential damage to the battery. This feature enhances the reliability and longevity of the battery system in electric industrial applications.
Our on-board charger provides the ultimate solution for keeping your industrial fleet powered and operational with unmatched reliability. Featuring advanced charging technology, it ensures rapid and efficient charging, guaranteeing that your batteries are fully charged quickly. Designed for durability, the charger boasts rugged construction and high-quality components engineered to withstand even the harshest environments. Whether you need to keep forklifts or AWP equipment running smoothly, our on-board charger is the ideal choice. Place your order today and discover the exceptional power and performance it delivers!
