FST-C-80200
FIRST POWER
Lithium-ion
On Board
CE, UL, FCC, RCM
Tow Truck
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
AC INPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X |
Voltage range | 3P 220/380/440/480VAC 1P 110/120/220/240VAC | ||||||||
Max input current | 30A | ||||||||
Input frequency | 45-65HZ | ||||||||
Max input Power | 21KW@3P 480VAC 11KW@3P 220VAC 7KW@1P 220VAC 3.4KW@1P110VAC | ||||||||
Power factor | > 0.95@3P; > 0.99@1P | ||||||||
DC OUTPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X | ||
Rated Voltage | 36V | 48V | 80V | 96V | 150V | 200V | 310V | 350V | 620V | ||
Voltage Range | 15-49VDC | 20-66VDC | 35-115VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC | ||
Max.charging power | 12KW | 16KW | 20KW | ||||||||
Efficiency | Max 97% | ||||||||||
OTHER PARAMETER
Protection level | IP67 |
Dimension | 324*306*143mm |
Weight | 10.5 KG |
Operating Temperature | -30°C to 55°C at full power, 55°C to 75°C with linear power derating |
Storage Temperature | -40℃-70℃ |
Heat Dissipation | fans Cooling |

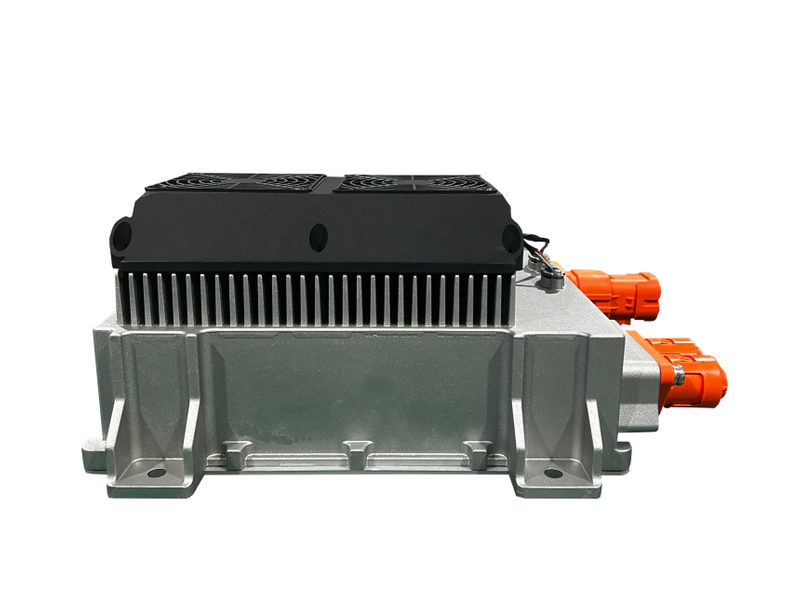

The 80V 200A On-Board Charger is a high-efficiency charging solution designed for demanding industrial applications. With IP67 protection, this charger is built to endure tough conditions, making it ideal for use in environments such as warehouses, distribution centers, and factories. It delivers a 200A output, ensuring quick and efficient charging for your electric vehicles, including forklifts, AGVs, and other heavy-duty machinery.
The compact design allows for easy integration into a variety of vehicles, while the fan-based cooling system ensures reliable performance during long charging cycles. With over-voltage, under-voltage, and over-temperature protection, the charger prioritizes safety while delivering peak performance.
With 97% efficiency, it helps reduce energy consumption, lowering your operational costs. The charger also offers wide input voltage compatibility and simple maintenance, thanks to its software updates via TF card. Certified by CE, FCC, and TUV, the 80V 200A On-Board Charger ensures maximum efficiency, safety, and reliability for all your industrial charging needs.
