FST-C-48250
FIRST POWER
Lithium-ion
On Board
CE, UL, FCC, RCM
Forklift
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
AC INPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X |
Voltage range | 3P 220/380/440/480VAC 1P 110/120/220/240VAC | ||||||||
Max input current | 30A | ||||||||
Input frequency | 45-65HZ | ||||||||
Max input Power | 21KW@3P 480VAC 11KW@3P 220VAC 7KW@1P 220VAC 3.4KW@1P110VAC | ||||||||
Power factor | > 0.95@3P; > 0.99@1P | ||||||||
DC OUTPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X | ||
Rated Voltage | 36V | 48V | 80V | 96V | 150V | 200V | 310V | 350V | 620V | ||
Voltage Range | 15-49VDC | 20-66VDC | 35-115VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC | ||
Max.charging power | 12KW | 16KW | 20KW | ||||||||
Efficiency | Max 97% | ||||||||||
OTHER PARAMETER
Protection level | IP67 |
Dimension | 324*306*143mm |
Weight | 10.5 KG |
Operating Temperature | -30°C to 55°C at full power, 55°C to 75°C with linear power derating |
Storage Temperature | -40℃-70℃ |
Heat Dissipation | fans Cooling |

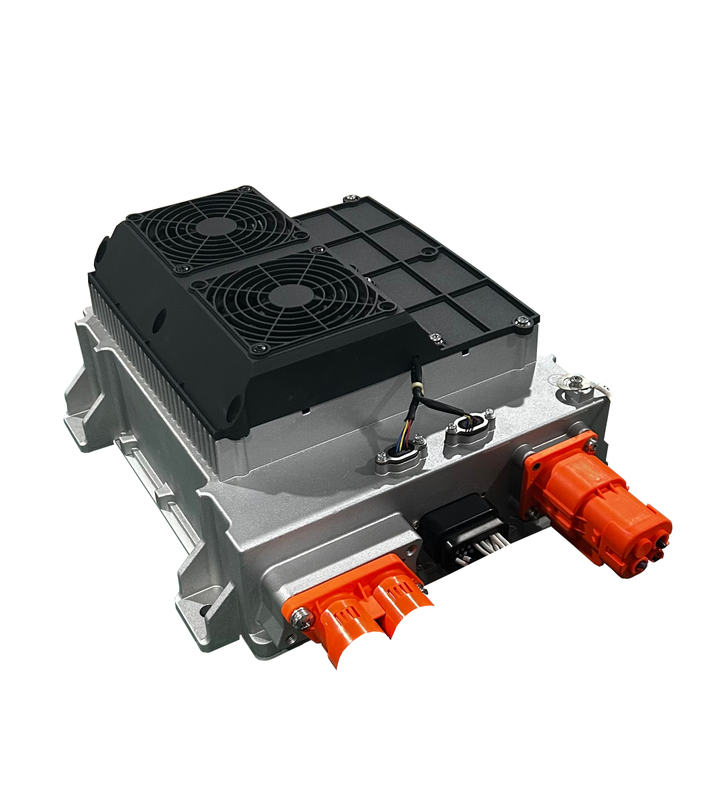

The 48V 250A On-Board Charger offers a high-performance, energy-efficient charging solution for electric vehicle fleets and industrial machinery. With IP67 protection, this charger is engineered to perform reliably in harsh conditions, making it ideal for environments such as warehouses, factories, and logistics operations. It provides a 250A output, ensuring quick charging cycles and reducing downtime for your fleet.
The charger’s compact and lightweight design makes installation straightforward, while its fan cooling system ensures consistent cooling during heavy usage. Equipped with over-voltage, under-voltage, and over-temperature protection, it ensures safe operation at all times.
With 97% efficiency, this charger helps reduce energy consumption and lowers operational costs. Designed for easy integration with various industrial vehicles, including forklifts, AGVs, and ground support equipment, it supports a wide range of input voltages. Fully CE, FCC, and TUV certified, the 48V 250A On-Board Charger is a reliable, safe, and efficient choice for your industrial charging needs.
