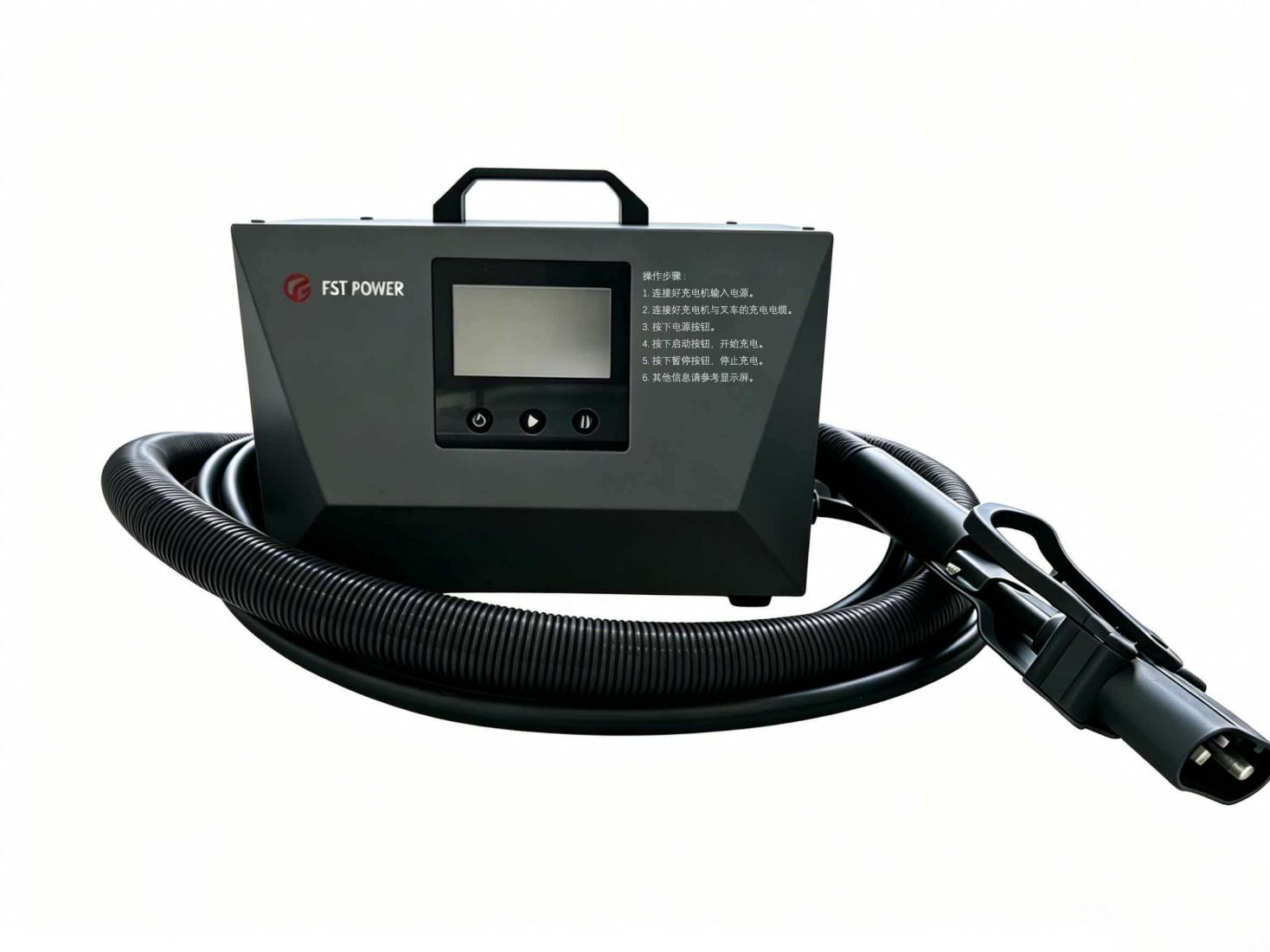

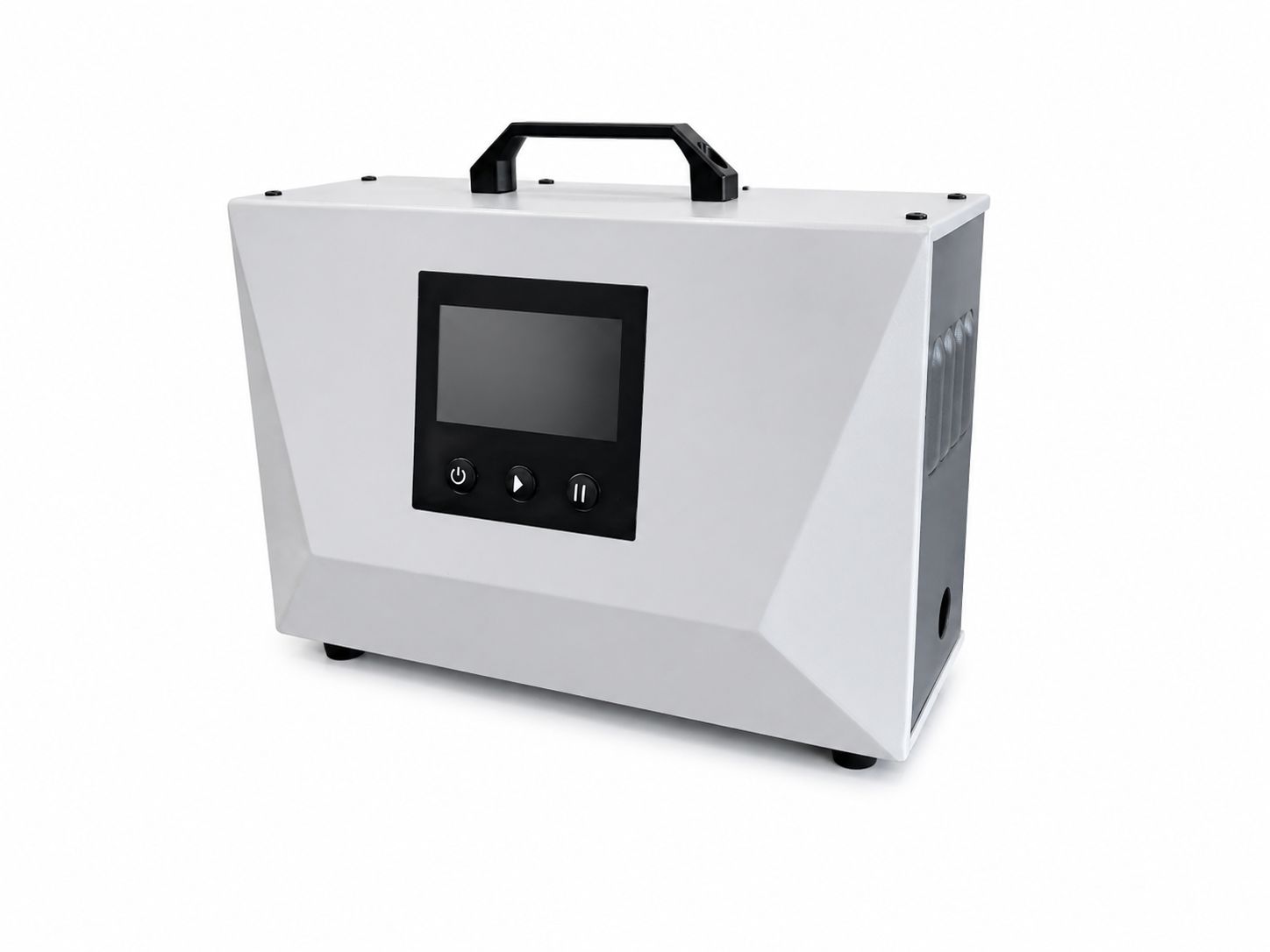

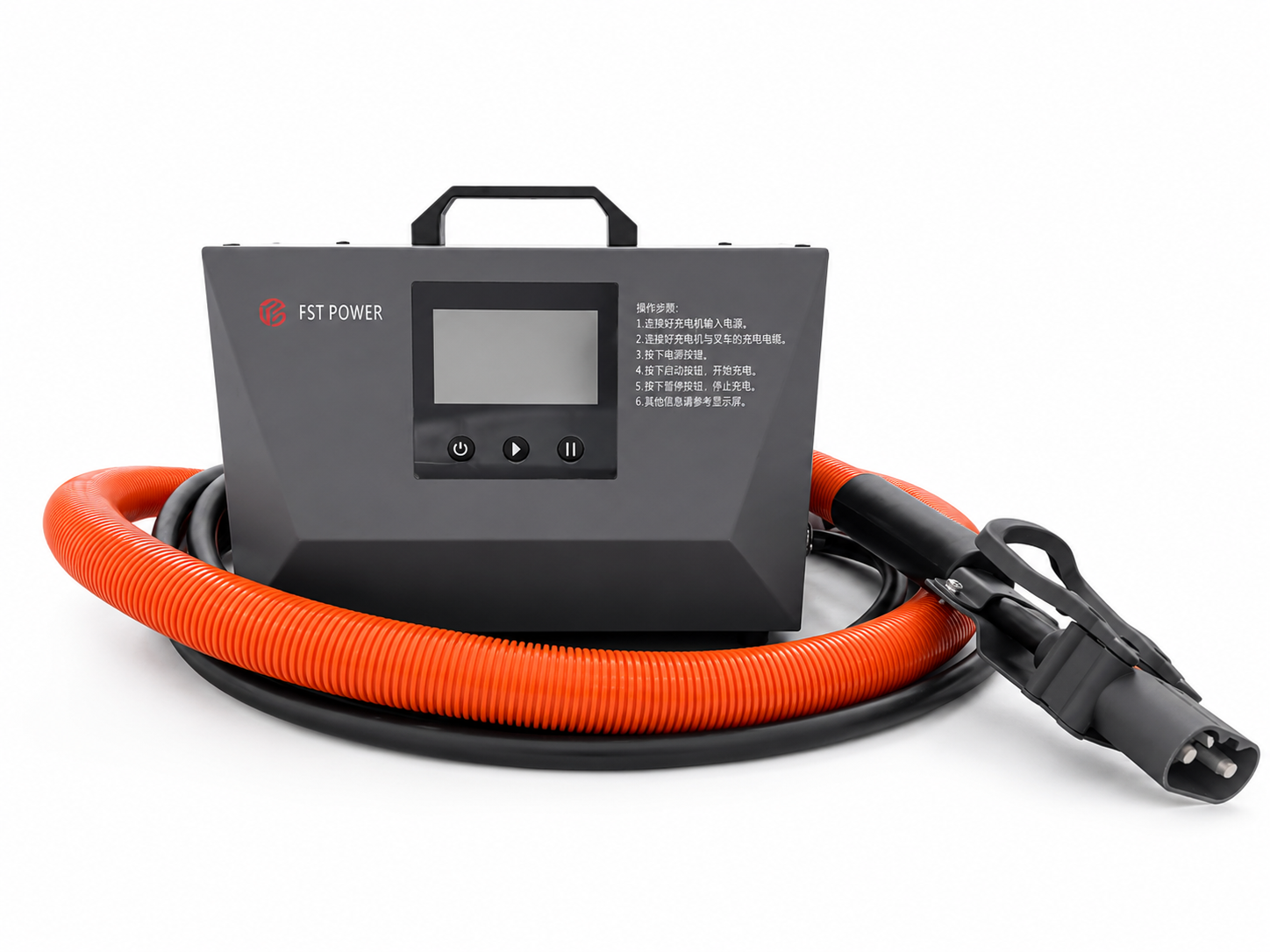

FST-E-48150-R
FIRST POWER
Lithium-ion
External Portable
CE
Golf Cart
3P380VAC
48V
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 93%).
8.Core Power Module is High IP Protection level, robust against dust, humidity, vibration etc.
SPECIFICATION
Model | FST-E-48100-R(G) | FST-E-48150-R(G) | FST-E-48200-R(G) |
Input Voltage | 3P 380VAC±15% | ||
Max Input Current | 10.5A | 16A | 21A |
Frequency | 45-65HZ | ||
Max Input Power | 5.8KW@3P 380VAC | 8.6KW@3P380VAC | 11.5KW@3P 380VAC |
Power Factor | 0.95MAX | ||
Phase-to-phase X Capacitor | 2.2µF | ||
Y Capacitor L-PE | 42.4nF | ||
Applicable Battery Voltage | 48V | ||
Voltage Range | 30-66VDC | ||
Output Voltage Accuracy | ±0.5V | ||
Output Current Accuracy | ±1% of Max Current | ||
Max Output Current | 100A | 150A | 200A |
Max Output Power | 5.3KW | 8KW | 10.5KW |
Efficiency | 93% MAX | ||
