FST-C-31060
FIRST POWER
Lithium-ion
On Board
CE, UL, FCC, RCM
Material Handling Equipment
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
AC INPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X |
Voltage range | 3P 220/380/440/480VAC 1P 110/120/220/240VAC | ||||||||
Max input current | 30A | ||||||||
Input frequency | 45-65HZ | ||||||||
Max input Power | 21KW@3P 480VAC 11KW@3P 220VAC 7KW@1P 220VAC 3.4KW@1P110VAC | ||||||||
Power factor | > 0.95@3P; > 0.99@1P | ||||||||
DC OUTPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X | ||
Rated Voltage | 36V | 48V | 80V | 96V | 150V | 200V | 310V | 350V | 620V | ||
Voltage Range | 15-49VDC | 20-66VDC | 35-115VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC | ||
Max.charging power | 12KW | 16KW | 20KW | ||||||||
Efficiency | Max 97% | ||||||||||
OTHER PARAMETER
Protection level | IP67 |
Dimension | 324*306*143mm |
Weight | 10.5 KG |
Operating Temperature | -30°C to 55°C at full power, 55°C to 75°C with linear power derating |
Storage Temperature | -40℃-70℃ |
Heat Dissipation | fans Cooling |

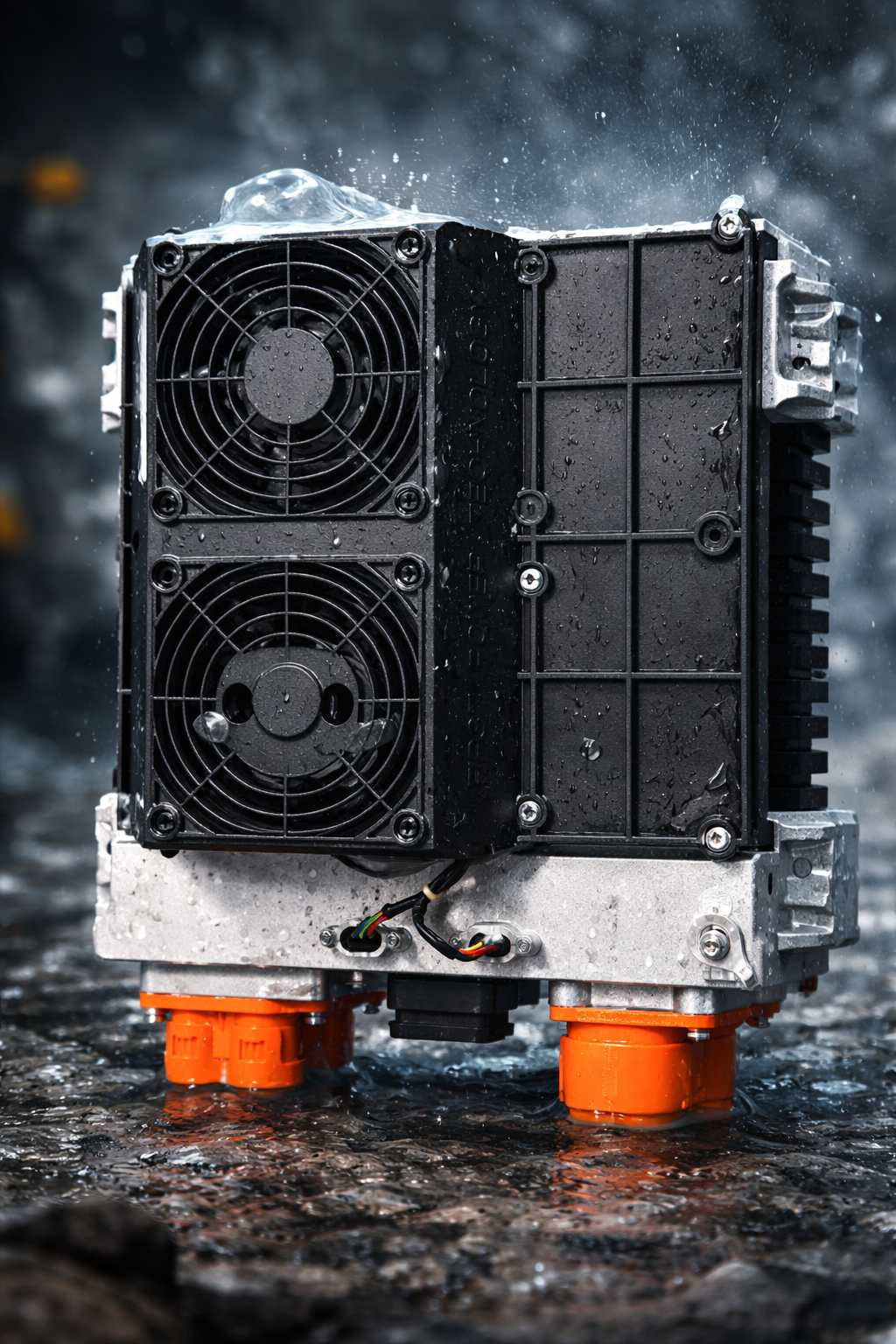

The 310V 60A On-Board Charger offers an efficient and durable charging solution for electric vehicles and industrial applications. With IP67 protection, it is built to withstand tough environments, ensuring long-lasting performance and reliability, even in challenging industrial settings. This charger provides a 60A output, delivering efficient and fast charging for forklifts, AGVs, and other heavy-duty machinery.
Its compact design and lightweight construction make it easy to integrate into various vehicles, while the fan-based cooling system ensures optimal performance during extended charging sessions. Safety features such as over-voltage, under-voltage, and over-temperature protection ensure secure operation at all times.
The 310V 60A On-Board Charger is highly efficient, offering up to 97% efficiency to reduce energy consumption and operational costs. Certified with CE, FCC, and TUV, it guarantees high standards for safety and performance, making it the ideal choice for your fleet's industrial charging needs.
