FST-C-20090
FIRST POWER
Lithium-ion
On Board
CE, UL, FCC, RCM
Aerial Working Platform
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
AC INPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X |
Voltage range | 3P 220/380/440/480VAC 1P 110/120/220/240VAC | ||||||||
Max input current | 30A | ||||||||
Input frequency | 45-65HZ | ||||||||
Max input Power | 21KW@3P 480VAC 11KW@3P 220VAC 7KW@1P 220VAC 3.4KW@1P110VAC | ||||||||
Power factor | > 0.95@3P; > 0.99@1P | ||||||||
DC OUTPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X | ||
Rated Voltage | 36V | 48V | 80V | 96V | 150V | 200V | 310V | 350V | 620V | ||
Voltage Range | 15-49VDC | 20-66VDC | 35-115VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC | ||
Max.charging power | 12KW | 16KW | 20KW | ||||||||
Efficiency | Max 97% | ||||||||||
OTHER PARAMETER
Protection level | IP67 |
Dimension | 324*306*143mm |
Weight | 10.5 KG |
Operating Temperature | -30°C to 55°C at full power, 55°C to 75°C with linear power derating |
Storage Temperature | -40℃-70℃ |
Heat Dissipation | fans Cooling |

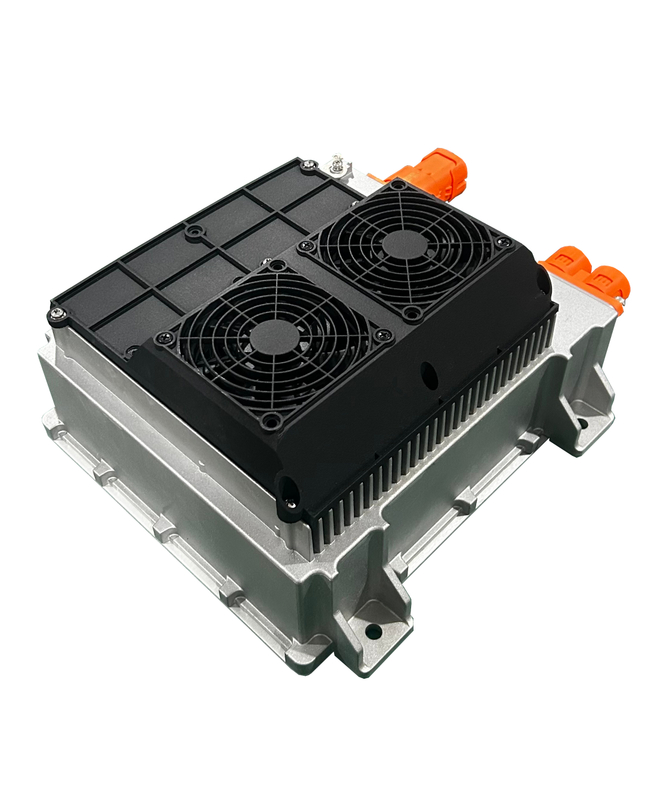

The 200V 90A On-Board Charger is an industrial-grade charging solution engineered for electric vehicles and fleet applications. Designed with IP67 protection, it’s built to withstand the toughest environments, providing reliable performance and durability even in challenging conditions. Ideal for charging forklifts, AGVs, and other industrial equipment, this charger delivers a 90A output, ensuring quick and efficient charging cycles to keep your fleet operational.
Its compact and lightweight design makes it easy to install without compromising on performance. Equipped with a fan-based cooling system, it maintains optimal operation even during extended use. With multiple safety protections such as over-voltage, under-voltage, and over-temperature protection, the charger ensures secure and consistent charging.
With up to 97% charging efficiency, the 200V 90A On-Board Charger reduces energy costs and improves the overall operational efficiency of your fleet. Certified by CE, FCC, and TUV, this charger ensures top-quality safety and performance for industrial applications, making it an ideal choice for maintaining high uptime and maximizing productivity.
