FST-C-150120
FIRST POWER
Lithium-ion
On Board
CE, UL, FCC, RCM
Electric Yacht
Multiple Input
Multiple Outputs
Product Advantage
1.This charger is certified with CE, UL, FCC, CSA, KC etc, and complies with relevant requirements for electromagnetic compatibility and safety.
2.Touch and leakage current values remain within required limits, without further measures.
3.The power factor is 0.99, therefore the available mains power is used to the maximum.
4.The charging current contains a very low ripple.
5.Charging from three-phase outlet.
6.Parallel connection of several chargers is possible, in order to achieve higher charging power.
7.Highly efficient (Max 95%).
8.Core Power Module is IP 67 Protection level, robust against dust, humidity, vibration etc.
AC INPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X |
Voltage range | 3P 220/380/440/480VAC 1P 110/120/220/240VAC | ||||||||
Max input current | 30A | ||||||||
Input frequency | 45-65HZ | ||||||||
Max input Power | 21KW@3P 480VAC 11KW@3P 220VAC 7KW@1P 220VAC 3.4KW@1P110VAC | ||||||||
Power factor | > 0.95@3P; > 0.99@1P | ||||||||
DC OUTPUT
Model | FST-C-36250-6BX-XX-X | FST-C-48250-6BX-XX-X | FST-C-80200-6BX-XX-X | FST-C-96160-6BX-XX-X | FST-C-150120-6BX-XX-X | FST-C-20090-6BX-XX-X | FST-C-31060-6BX-XX-X | FST-C-35050-6BX-XX-X | FST-C-62030-6BX-XX-X | ||
Rated Voltage | 36V | 48V | 80V | 96V | 150V | 200V | 310V | 350V | 620V | ||
Voltage Range | 15-49VDC | 20-66VDC | 35-115VDC | 40-132VDC | 58-193VDC | 78-257VDC | 120-400VDC | 135-450VDC | 240-800VDC | ||
Max.charging power | 12KW | 16KW | 20KW | ||||||||
Efficiency | Max 97% | ||||||||||
OTHER PARAMETER
Protection level | IP67 |
Dimension | 324*306*143mm |
Weight | 10.5 KG |
Operating Temperature | -30°C to 55°C at full power, 55°C to 75°C with linear power derating |
Storage Temperature | -40℃-70℃ |
Heat Dissipation | fans Cooling |

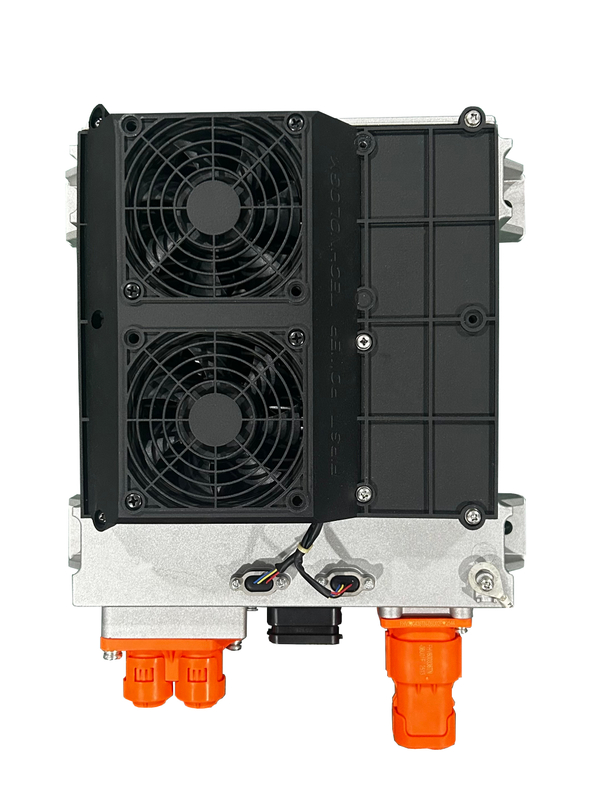

The 150V 120A On-Board Charger is designed for industrial applications, providing a high-efficiency charging solution for electric vehicles such as forklifts, AGVs, and heavy-duty industrial machinery. With IP67 protection, this charger is capable of withstanding harsh industrial environments, ensuring consistent and reliable performance even in challenging conditions.
Providing a 120A output, this charger delivers fast and efficient charging, reducing downtime and improving fleet productivity. Its compact and lightweight design ensures it’s easy to install and integrate into a variety of vehicles. The charger also features fan-based cooling, ensuring it performs optimally during extended charging cycles.
Safety is a priority with the 150V 120A On-Board Charger, which includes over-voltage, under-voltage, and over-temperature protection. With 97% charging efficiency, it helps reduce energy consumption and operating costs. Certified with CE, FCC, and TUV, this charger guarantees high-quality performance and safety standards, making it the ideal choice for your industrial fleet’s charging needs.
